Product Details
Product Type
ABS Module
Part Number
ABSAISREP
Description

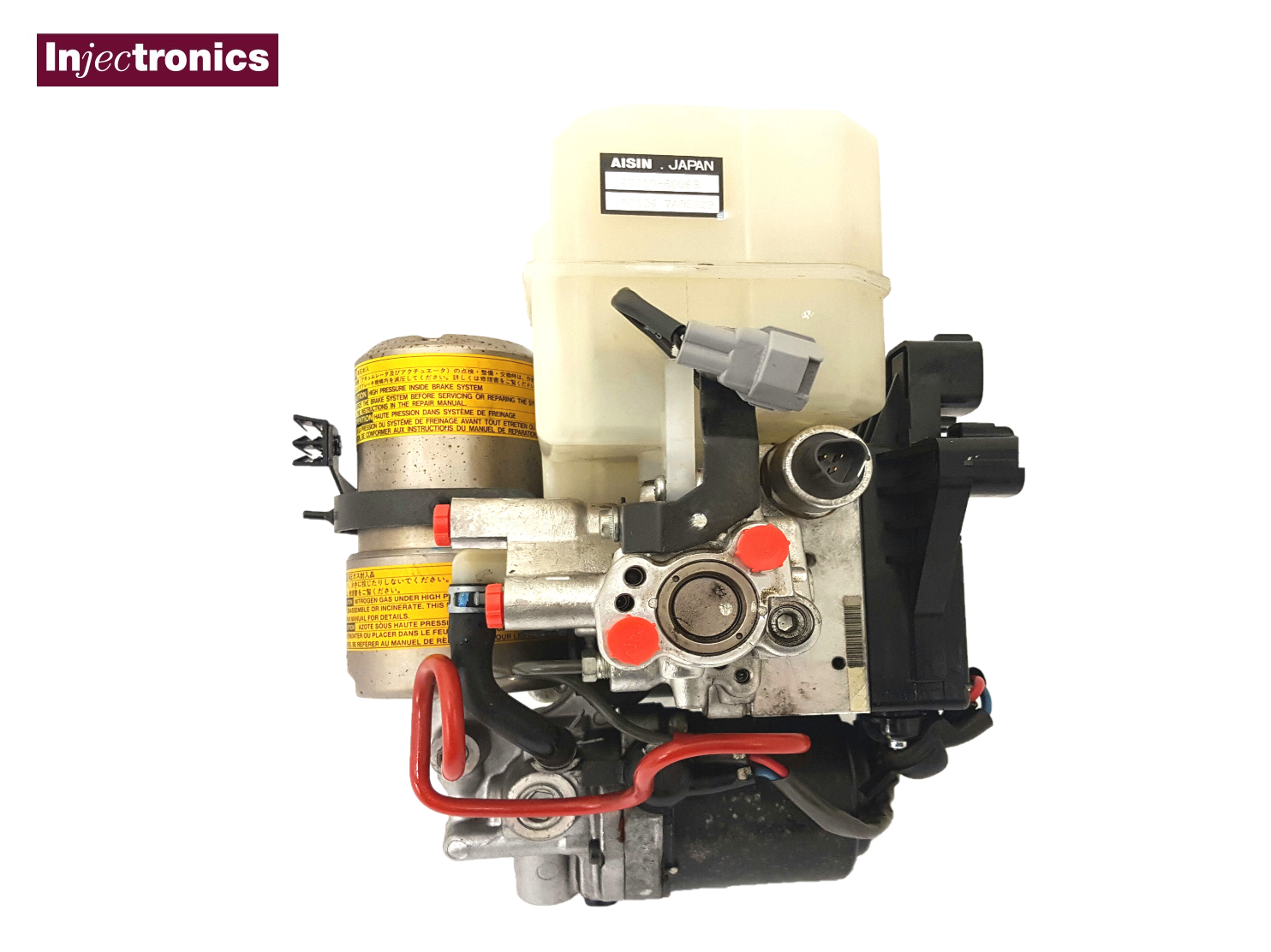

Toyota Landcruiser / Lexus LX ABS / Hydraulic Brake Booster (HBB) - Prompt repair service
Information
Repair service of customers own unit
- This is a test and repair service of the customers own unit
- NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
- Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to Injectronics.
- Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.
DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS. (ref image below)
- To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
- Followed by packing the sealed box in a second box to reinforce it.
01ABS
- Lexus LX470 UZJ100R 4.7L (1998-2008)
- Toyota Landcruiser UZJ100R 4.7L (1998-2007)
- Toyota Landcruiser FZJ105R 4.5L (1998-2002)
- Toyota Landcruiser HZJ105R 4.2L Diesel (1998-2007)
- 47210-60063
- 4721060063
- 47050-60010
- 4705060010
- 1521267A03829
- 7A120122
- 1J646701150550
- 2000433021486
- 3F240231
- 4705060043
- 47050-60043
- 4721060013
- 47210-60013
- ABS light on
- Brake pedal goes hard
- ABS pump motor failure
- Fault code C1251 - pump motor open circuit
- Fault code C1256 - accumulator low pressure
- Fault code C1252 - booster pump on-time abnormal
- Fault code C1223 - ABS control system malfunction
NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed above
