Catalogue
Product Details
Product Type
ABS Module
Part Number
ABSPAJREP
Description

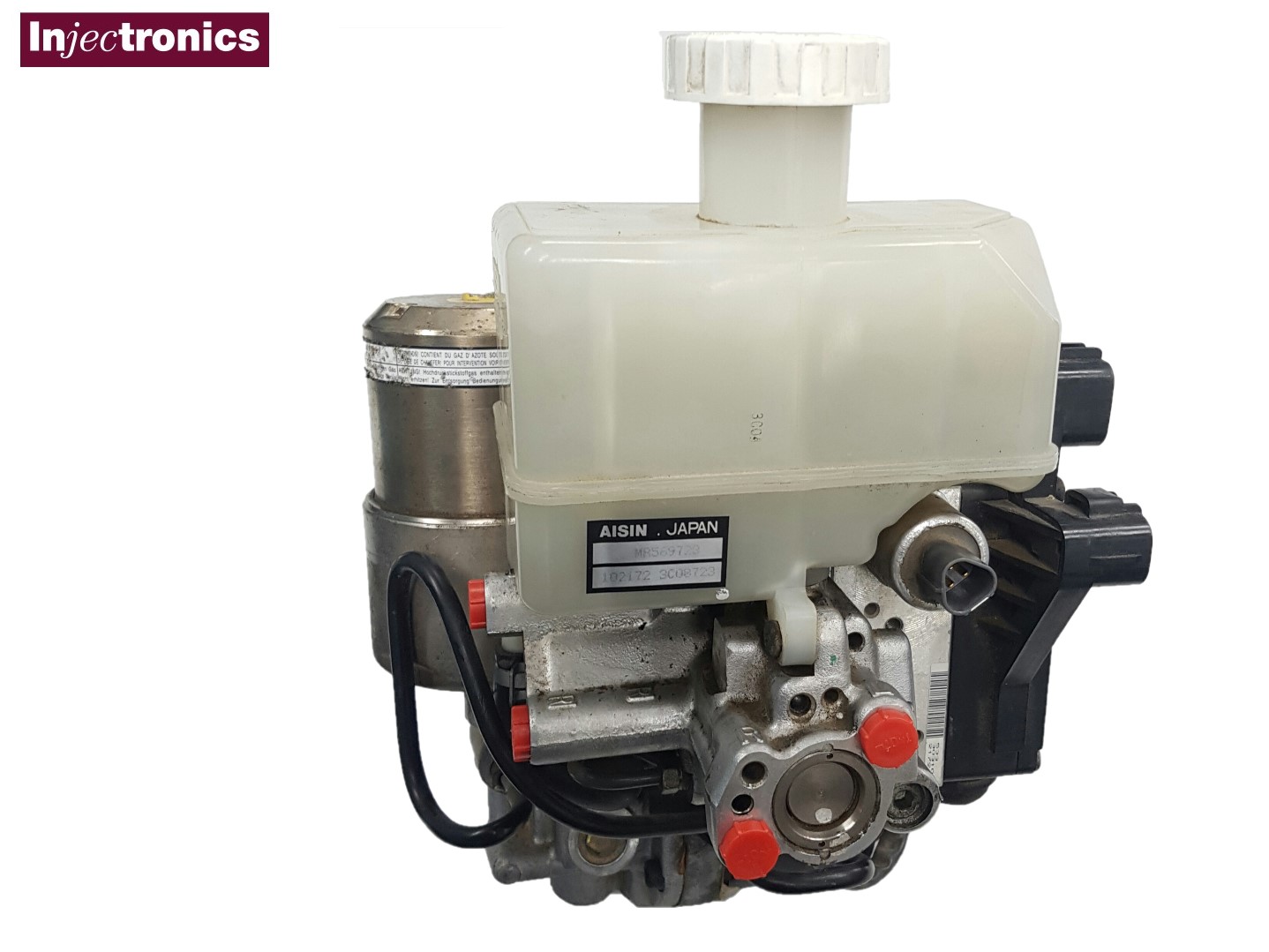

Mitsubishi Pajero ABS / Hydraulic Brake Booster (HBB) - Prompt repair service
Information
Repair service of customers own unit
- This is a prompt test and repair service of the customers own unit
- NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
- Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to Injectronics.
- Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.
DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS. (ref image below)

- To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
- Followed by packing the sealed box in a second box to reinforce it.

01ABS
- Mitsubishi Pajero 3.0L 2000-On
- Mitsubishi Pajero 3.5L 1997-2005
- Mitsubishi Pajero NM 3.5L 2000-2004
- Mitsubishi Pajero NP 3.5L 2000-2004
- Mitsubishi Pajero NS 3.8L 2006-2013
- Mitsubishi Pajero NT 3.8L 2006-2013
- Mitsubishi Pajero NW 3.8L 2006-2013
- Mitsubishi Pajero V97W 3.8L 2006-On
- Mitsubishi Pajero NM,NP,NS,NT,NW 3.2L Diesel (1999-2013)
- MR569728
- 1930807D09975
- 2300895G10265
- 2020072D02992
- MR977461
- MR407202
- 0H05882
- ABS light on
- Brake pedal goes hard
- ABS pump motor failure
- Fault code 57 - Accumulator pressure system malfunction
- Fault code 54 - Pump motor relay malfunction
- Fault code 58 - Pressure switch malfunction
- Fault code 53 - Motor relay circuit open or shorted
NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed above
