Catalogue
Product Details
Product Type
ABS module
Part Number
ABSADV2REP
Description

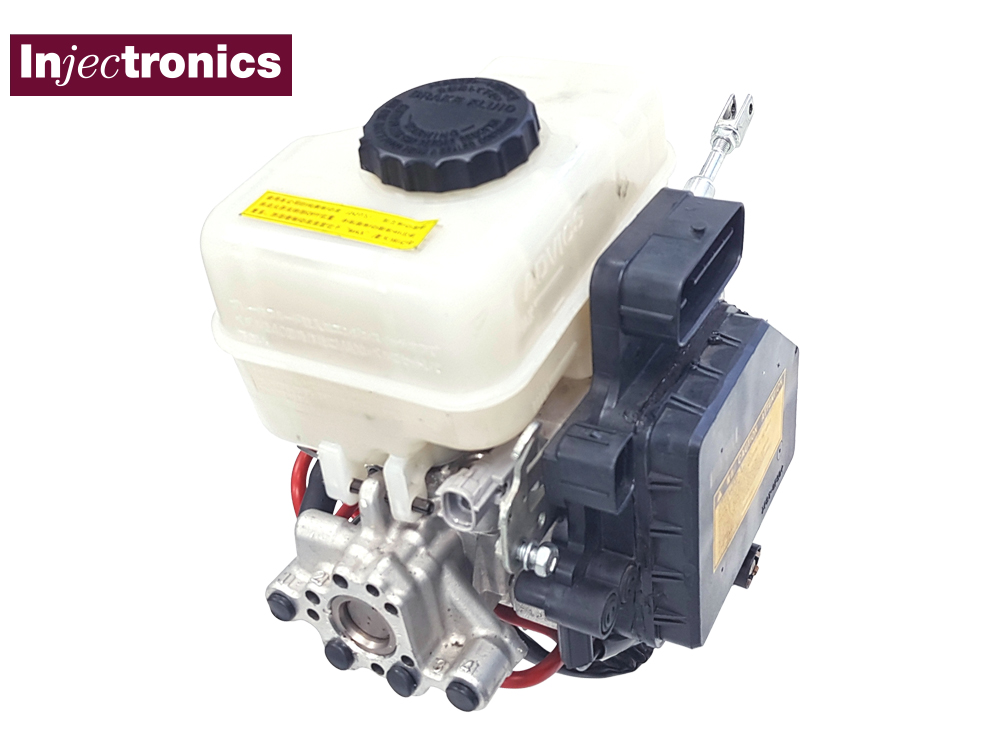

Toyota Prado ABS / Hydraulic Brake Booster (HBB) - Prompt repair service
Information
Repair service of customers own unit
- This is a test and repair service of the customers own unit
- NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
- Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to Injectronics.
- Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.
DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS. (ref image below)
- To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
- Followed by packing the sealed box in a second box to reinforce it.
01ABS
- Toyota Landcruiser Prado KDJ150R 3.0L (2009-2015)
- Toyota Landcruiser Prado GDJ150R 2.8L (2015-ON)
- Toyota Landcruiser VDJ200 4.5L (2007-ON)
- Toyota Landcruiser UZJ200 4.7L (2007-2012)
- 8954160060
- 8954160061
- 8954160320
- 1095F132121
- 1117C171226
- ABS light on
- Brake pedal goes hard
- ABS pump motor failure
- Fault code C1251 - pump motor open circuit
- Fault code C1256 - accumulator low pressure
- Fault code C1252 - booster pump on-time abnormal
- fault code C1223 - ABS control system malfunction
NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed above
