Catalogue
Product Details
Product Type

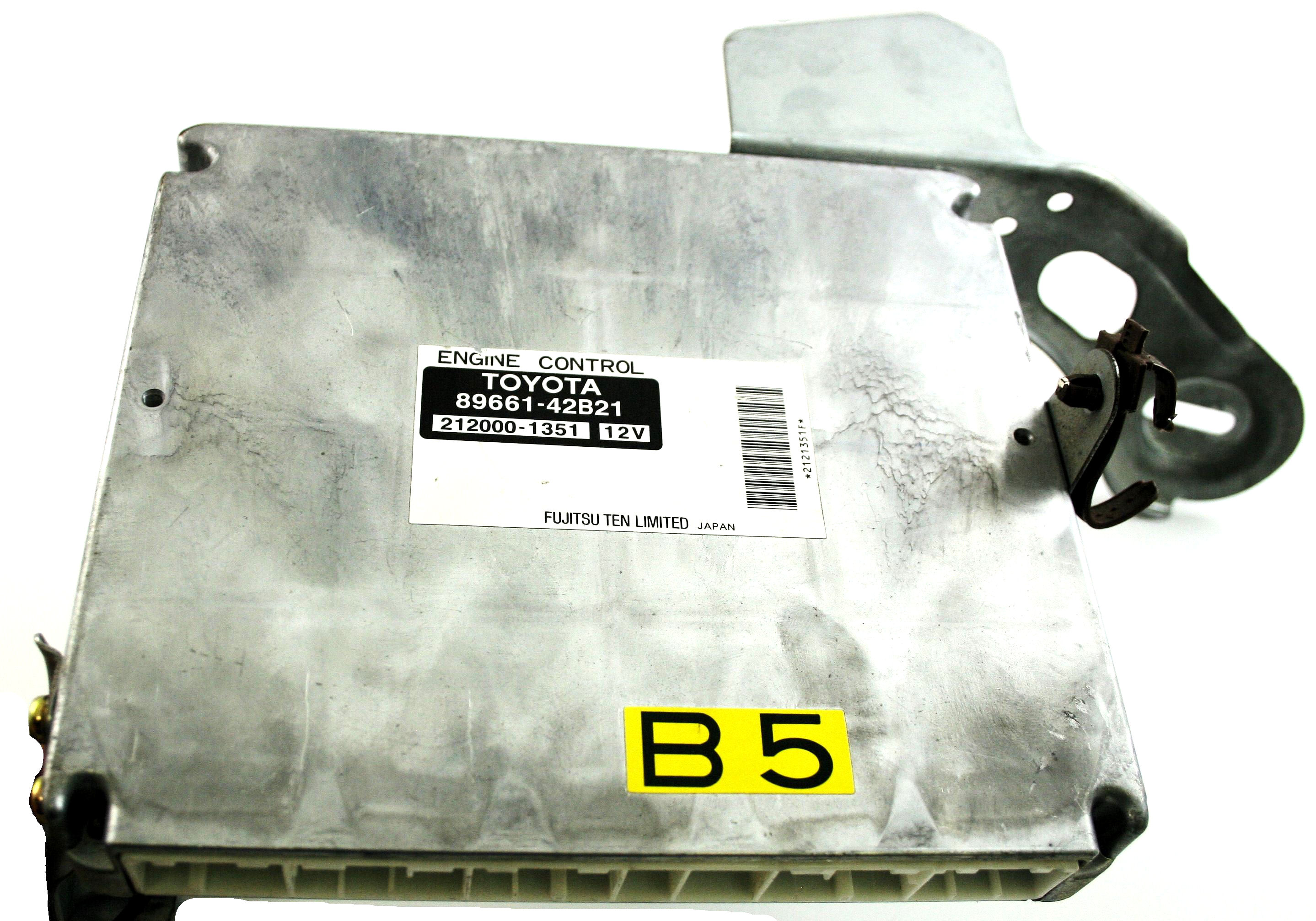

Electronic Control Module
Part Number
8966142B21CO
Description
TOYOTA RAV4 2AZFE AUTO EXCH ECM
Information
Remanufactured Exchange Unit
Critical info
- This unit requires programming upon installation.
- Bridge CG & TC of diagnostic connector, insert ignition key to barrel and turn ignition to on and leave for 30mins.
- Turn ignition to the off position and remove bridge from diagnostic connector.
- Turn the ignition on and start the engine.
- Click here to view important product information
Applications
- TOYOTA RAV4 ACA22R 2.4 Lt 2003-2006
- TOYOTA RAV4 ACA23R 2.4 Lt 2003-2006
- TOYOTA RAV4 ACA31R 2.4 Lt 2005-2017
- TOYOTA RAV4 ACA36R 2.4 Lt 2005-2017
OEM and Genuine Part number
- 8966142B21
- 21200-01350
- 21200-01351
- 89661-42B20
- 8966142B20
- 89661-42B21
Common faults
- Transmission faults
