Product Details
Product Type

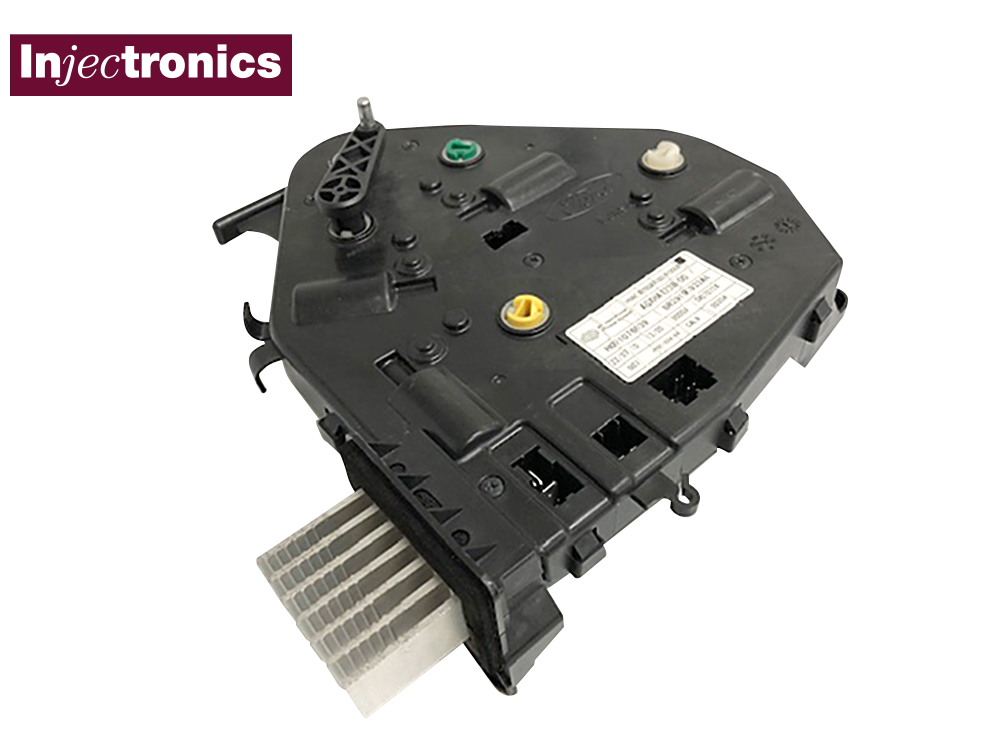

HVAC Integrated Module
Part Number
HIM01REP
Description
Ford BA/BF/FG/SX/SY/SZ HIM Module - Prompt repair service
Information
Repair service of customers own unit
- This is a test and repair service of the customers own HIM (Heater Integrated Module)
- The customer must send the HIM and the drivers side intake motor (dual zone only) for testing / repairs
- Repaired units are supplied with reinstallation instructions
- Please contact Injectronics for more information or if your fault is not listed

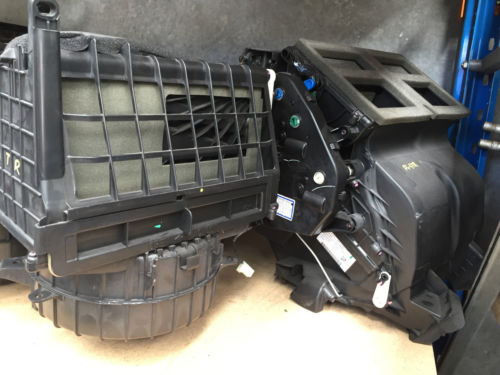

- The HIM is located behind the LH side of the centre console inside the main heater box
01HIM
02Driver's side intake motor (dual zone only)
- Ford Falcon / Fairmont BA-BF series (2002-2011)
- Ford Falcon FG series 1 & 2 only (2008-2014) - NOT FG-X
- Ford Territory (2004-2016)
- 3R2319C933
- 3R2319C933AA
- 3R2319C933AB
- 3R2319C933AC
- 8R2919C933
- 8R2919C933AA
- 8R2919C933AB
- 8R2919C933AC
- AR2919C933AA
- BARRA
- ORION
- HIM
- BR2Z19H616AA
- BR2Z19H616BA
- blower fan inoperative
- unable to adjust temperature
- blower fan staying on
- unable to adjust fan speed
- unable to regulate temperature between zones
